JY152 Timer Board
2 section price and time:
First section price and time for Machine start working- First use
Second section price and time when machine is working- CONTINUOUS USE
Example setting: First use- 2 dollar for 10 mins, CONTINUOUS USE- 1 dollar for 6 mins.
Insert 2 dollars--> machine start working for 10 mins-> Insert 1 dollar in 10 mins--> add 6 mins.
User has to insert 2 dollars when machine is standby.
Detail Function
| Input Voltage | DC+12V |
| Standby | Display shows:00:00, reply: Normal Open (NO) |
| Accumulated time | Yes, add time if receive signals again when time is running |
| Max current load | 15A |
| How it works |
| Mode 1 | Time runs down after receive signals-> Display shows remaining time and supply power to device-> it cuts off power after time runs out |
Pause
(connect a button) | Push button pause: it cuts off power when pause, display shows remaining time. Re-supply power after push button pause again |
| Operating Mode | Please reference to MODE SETTING on page 2 |

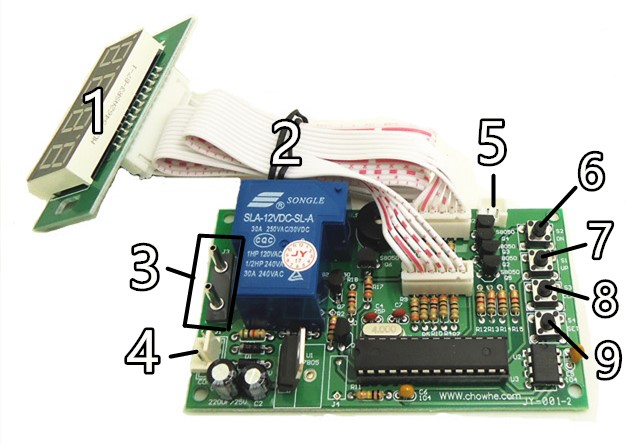

Connection and Position
1: Display 2: 40 cm white lead
3: Switch controls device power wire:
control “L” or “N” of device power wire
4: To input device:
YELLOW: DC12V, WHITE: input signal, BLACK: GND
5: Pause
6-9:Setting Buttons: S2, S1, S3, and S4

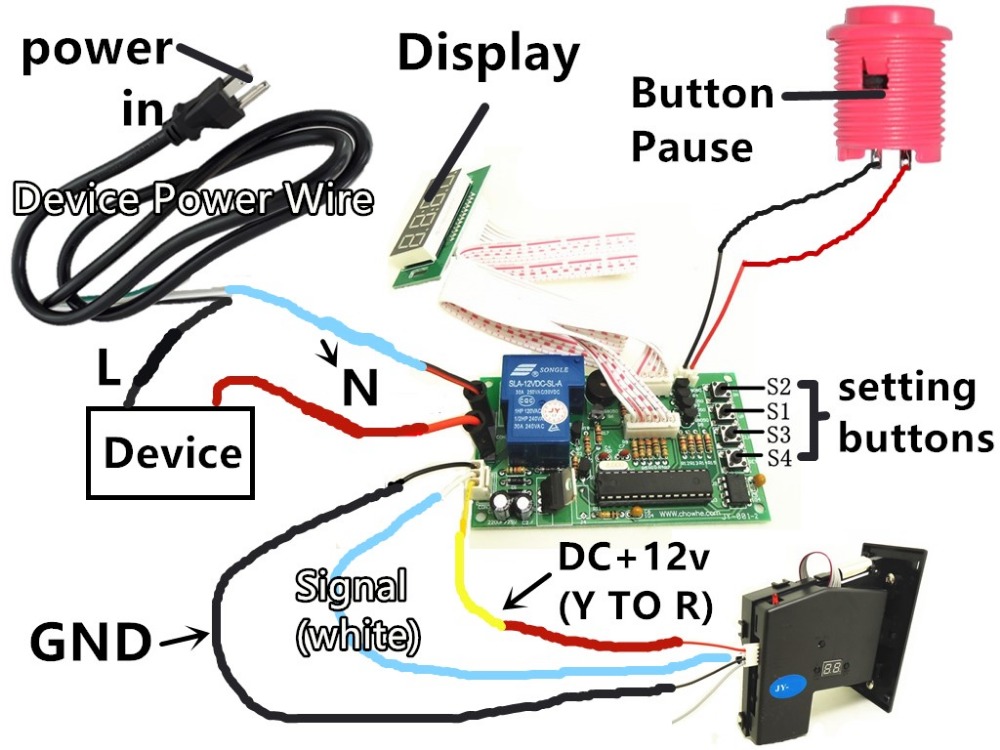

Connection Example
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PAGE-2
Setting
Please follow CODE ON DISPLAY and use button "S1" and "S2" to set up number
- INPUT SIGNAL QUANTITY AND TIME
- Please press "S4". “B” flashes. Please set up INPUT SIGNAL QUANTITY for Active Machine (01-50).
- Please press "S4", “A” flashes. Please set up TIME (01-99).
- Please press "S4", “B” flashes. Please set up TIME (01-99).
- Please press "S4". “B” flashes.Please set up INPUT SIGNAL QUANTITY for CONTINUOUS USE (01-50).
- Please press "S4", “A” flashes. Please set up TIME (01-99).
- Please press "S4", “B” flashes. Please set up TIME (01-99).
- Please set up TIME for Warning Sound.
- Please press button "S4" to finish.
Please follow table to set up operating function:
- Please hold on button "S1" and "S2" simultaneously for 3 seconds to get into MODE SETTING.
- Please use button "S1" and button "S2" to set up number for CODE
- Please press button "S4" to switch to next code
| Function | Code on Display | Description |
| A | B |
| Running Time | 01 | 01 | Time runs down without pressing button |
| 02 | Reserve |

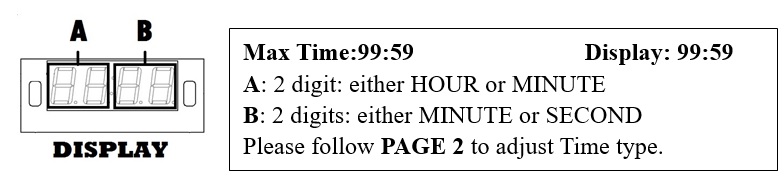

| Time Type | 02 | 03 | MINUTE: SECOND |
| 04 | HOUR: MINUTE |
| | 03 | 05 | Reserve |
| 06 | Reserve |
| Back to standby | 04 | 1-30 | user has no action after push buttons or receive signals in setting time |
| Default: 01-03: Bold and base line. 04: not use the function. |
